Y Fence Post

Surface treatment:

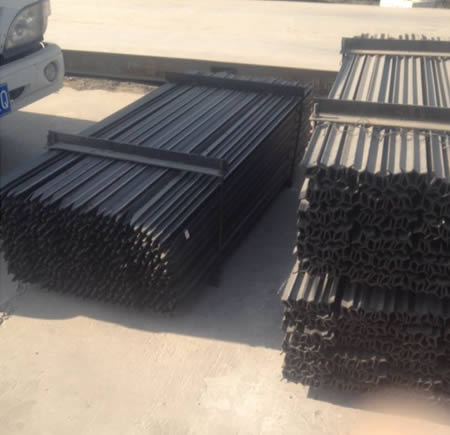

  • Black star pickets: Black (Tar) Bitumen Coated.
  • Galvanised star pickets: Hot Dipped Galvanised.

Length: 0.45-3.0m.

Unit weight: 1.58kg/m, 1.86kg/m, 1.9kg/m, 2.04kg/m.

Packing: 10 pcs/Bundle, 40 bundles; 400pcs/pallet.

Material: carbon steel, metal material.

Y Post / Star Picket
Measurement 0.45M 0.60M 0.90M 1.35M 1.50M 1.65M 1.80M 2.10M 2.40M
SPEC pct/mt pct/mt pct/mt pct/mt pct/mt pct/mt pct/mt pct/mt pct/mt
1.58kg/m 1406 1054 703 468 421 386 351 301 263
1.86kg/m 1195 896 597 398 358 326 299 256 224
1.90kg/m 1170 877 585 390 351 319 292 251 219
2.04kg/m 1089 817 545 363 326 297 272 233 204
Hole Quantity for Australia and New Zealand
Length 0.45M 0.60M 0.90M 1.35M 1.50M 1.65M 1.80M 2.10M 2.40M
Size (20-22MM) × (20-22MM) × (30-32MM)
Thickness 2.5MM-3.2MM
Holes ( Australia) 3 3 5 11 14 14 14 7 7
Holes (New Zealand)       7 7 7 8

Y Fence Post Processing:

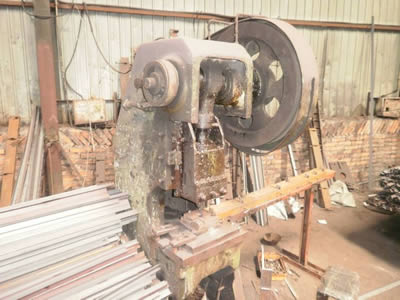

1. Steel Y Post Punching Hole

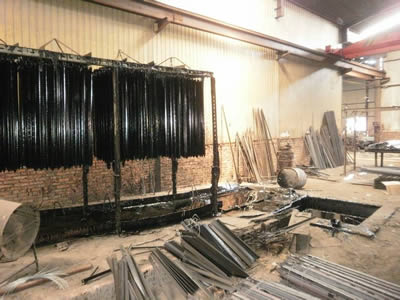

2. Steel Y Post Black Coated Painting

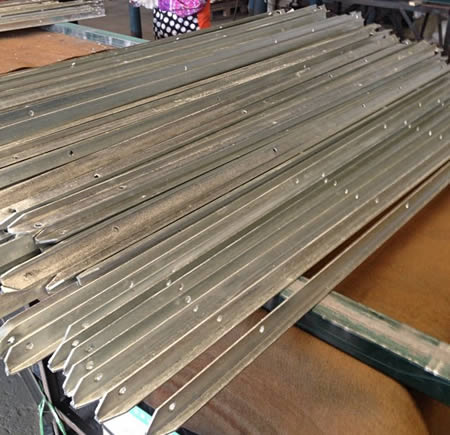

3. Star Picket Hot Dipped Galvanized

4. Star Picket Packing

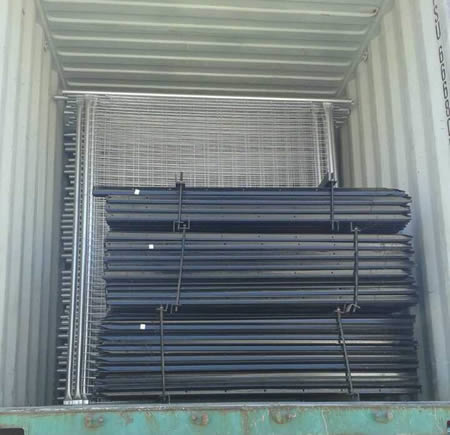

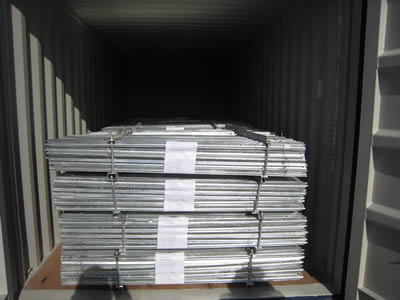

5. Star Picket Loading

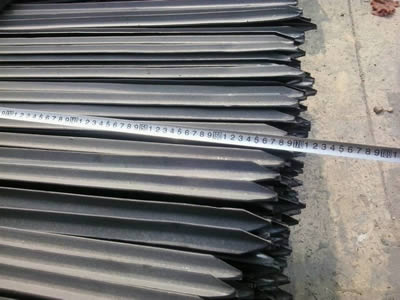

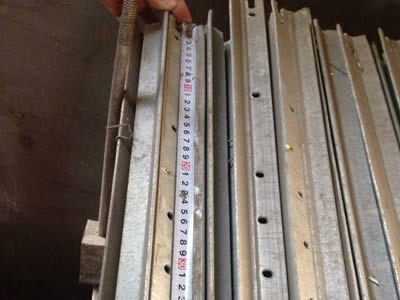

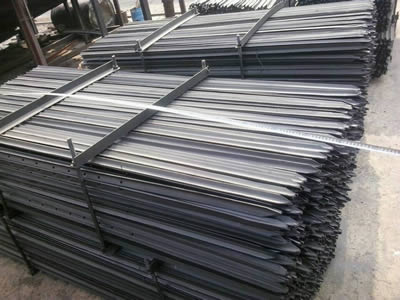

Test

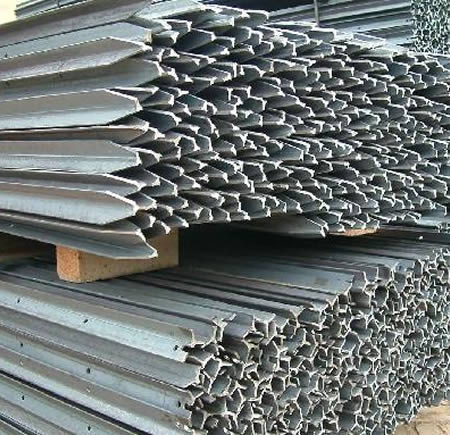

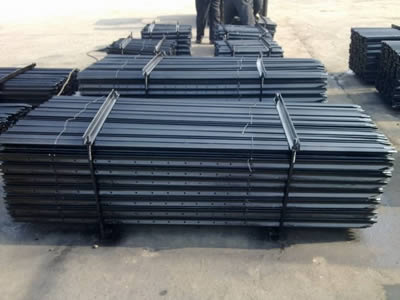

Star pickets
Star pickets

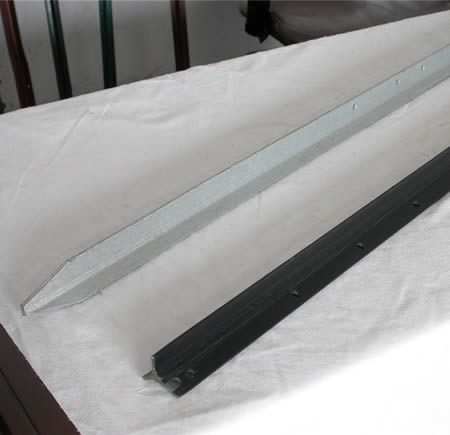

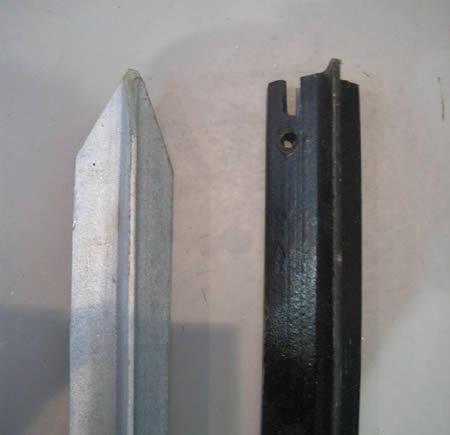

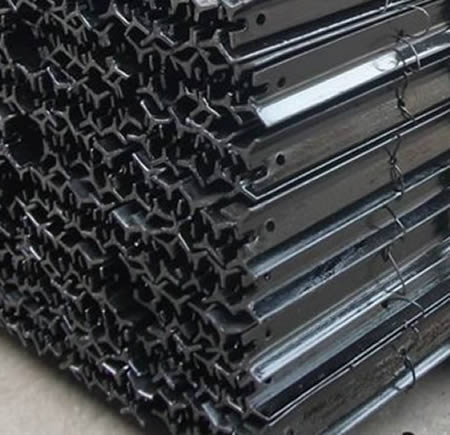

Y post

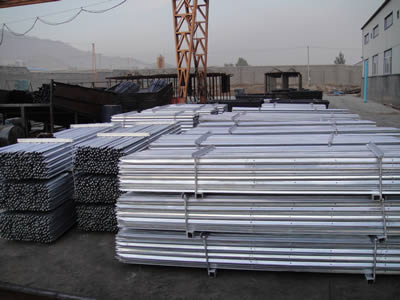

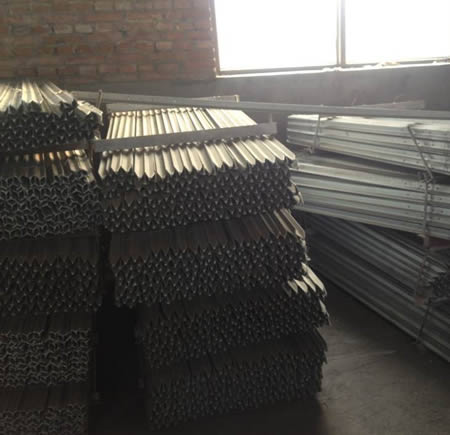

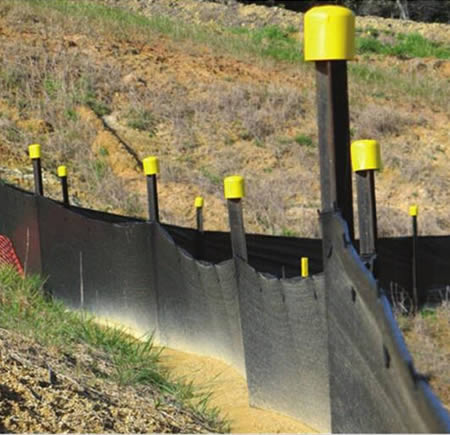

Gallery of Y Fence Post Application:

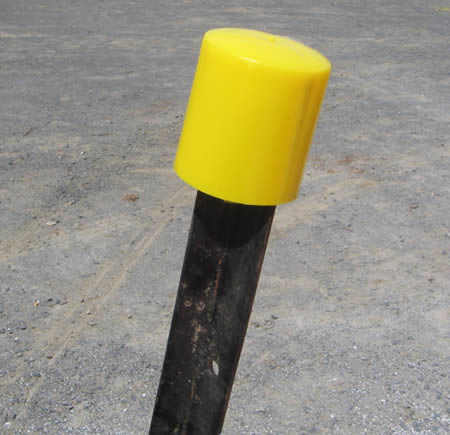

Y Fence Post Gallery
