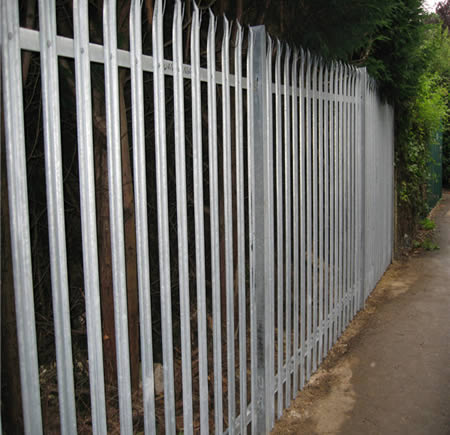

Palisade Fence

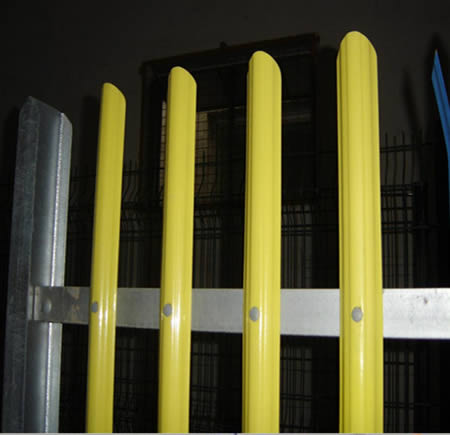

Standard Palisade Fencing available with in the traditional ‘D’ section pales or ‘W’ section pales.

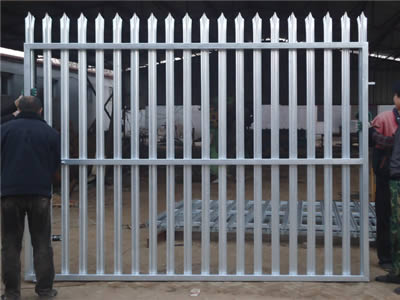

We supply a full range of heights starting from 1.2 metres up to 3.6 metres. All Palisade fence is made from material within the requirements of British Standard 1722 part:12. We supply Panels too which are normally supplied loose for assembly on site in bays of 2.75m.

Stock Fence Heights	Horizontal Rail Angle Section	Posts			Support Feet
		R.S.J.	Length mm	Centres mm	No Per Bay	Length mm

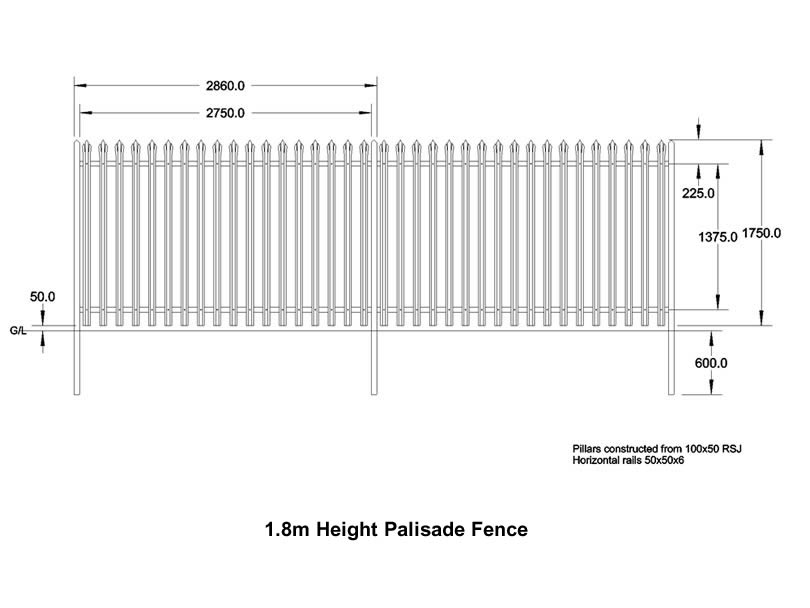

1800 mm	45 × 45 × 6	102 × 44 or 100 × 55	2400	2750	1	455
2000 mm	45 × 45 × 6	102 × 44 or 100 × 55	2625	2750	2	455

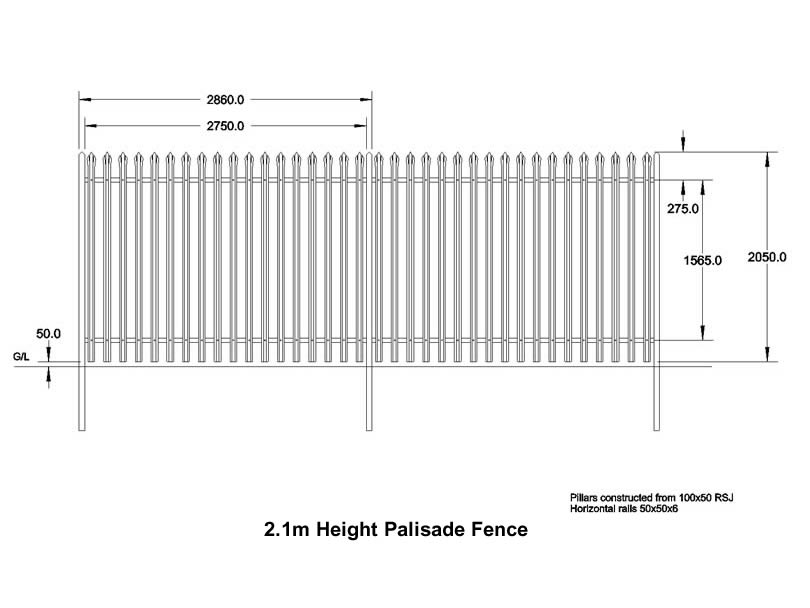

2100 mm	45 × 45 × 6	102 × 44 or 100 × 55	2725	2750	2	455

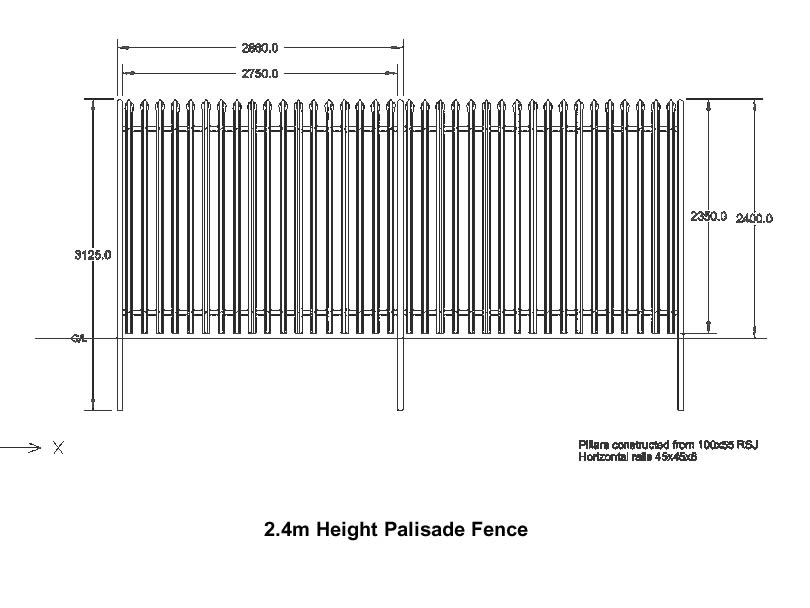

2400 mm	45 × 45 × 6	102 × 44 or 100 × 55	3125	2750	2	610
3000 mm	50 × 50 × 6	102 × 44 or 100 × 55	3925	2750	2	610

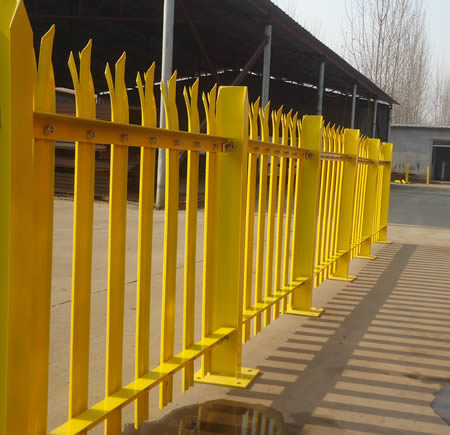

Palisade Posts: Posts are generally 102 × 44 or 100 × 55 RSJ however, for a higher security installation 127 × 76 UB can be supplied. Posts can also be manufactured with base plates, & wall fixings.

Palisade Rails: Rails are available in four sizes, 40 × 40, 45 × 45, 50 × 50 and 65 × 50. The size of the rail is dependent on the height of fence and level of security required.

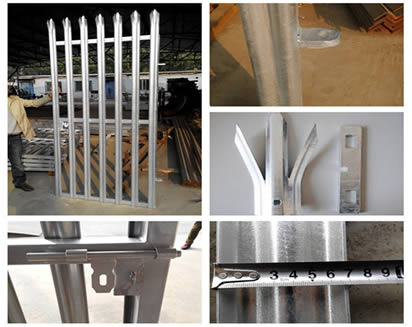

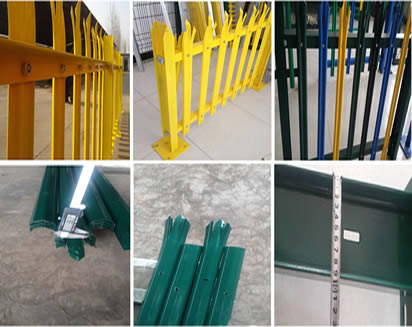

Palisade Fencing Connection Fish plate And Palisade Fencing Fittings

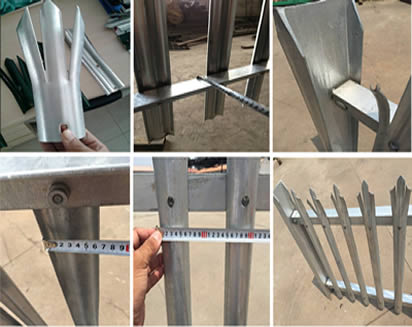

A fish plate passes through a slot in the post and secures the horizontal rail captive in its position. High security palisade fencing pales are connected to the horizontals to form the panel and are held securely together by utilising vandal resistant security fasteners.

To fix the pales to the rails two types of fixings are available. Rivets and collars (M6 and M8) for which a fencing rivet gun is required or M8 bolts with permanency fixings, designed to snap off during erection for a secure fixing.

Steel Palisade Fencing Finishes:

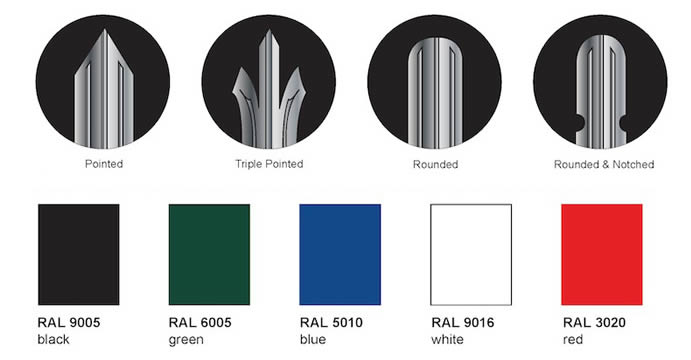

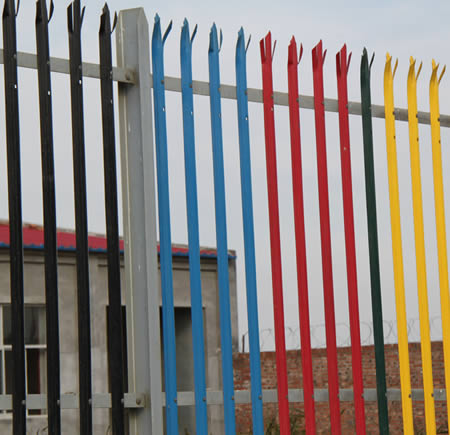

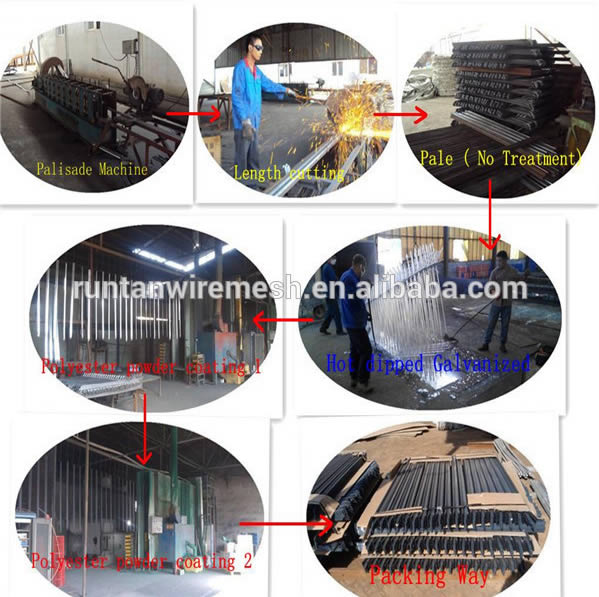

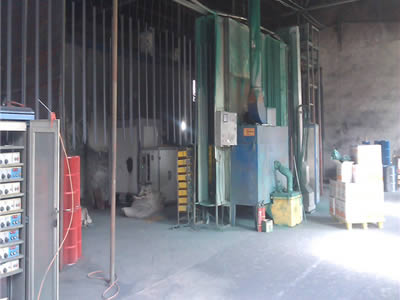

Palisade can be supplied self-colored, galvanized or galvanized & polyester powder-coated in virtually any colour to order.

General Industrial Palisade Fence Security:
‘W’ profile 2.0mm 2.5mm 3.0mm.
‘D’ profile.

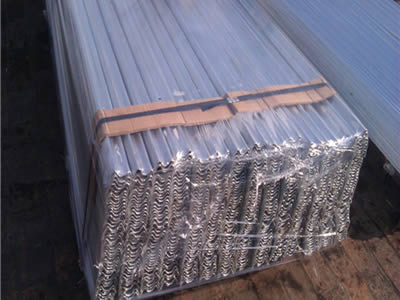

Palisade Fence Set Packing And loading Container: In high quality steel pallet with plastic film.

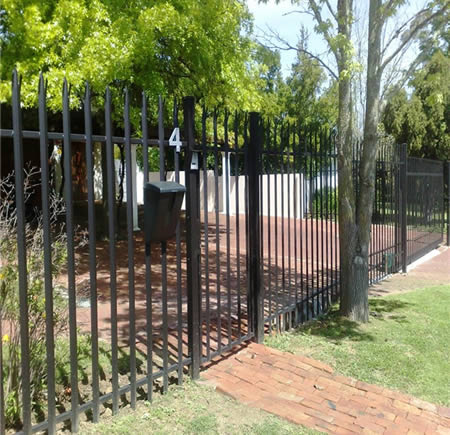

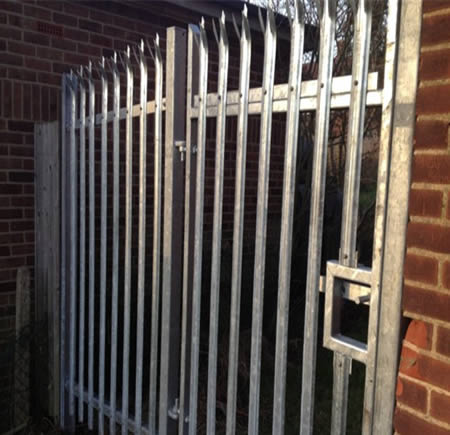

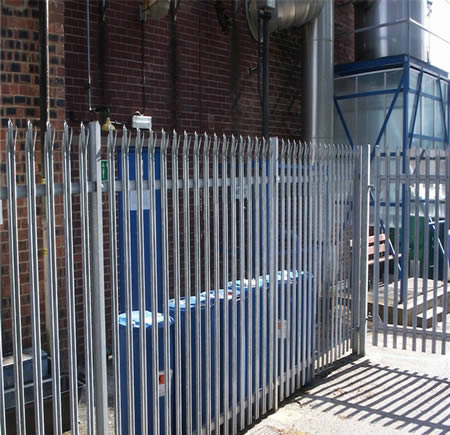

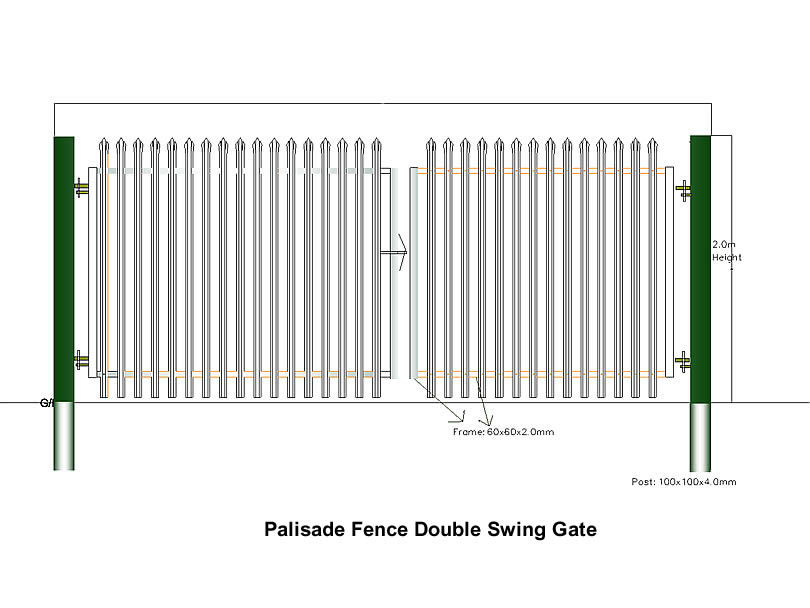

Palisade Fence Gates: Gates are also available in the form of singular pedestrian gates OR double vehicle gates all as per the above spec. These gates are manufactured to look in keep as the rest of the palisade fencing system and are very reasonable as well as highly durable. All gates again are available in a RAL color as specified.
