Double Wire Fence

Qualified supply twin wire mesh fence with high strength, heavy duty resistance and rigid panel system. This twin bar 868 type of welded mesh fence use twin 8mm horizontal wires and 6mm vertical wire to reinforce fence panel’s strength. The mesh aperture of twin wire mesh fence consists of a 200 x 50mm mesh spacing to provide excellent see through visibility. A lighter twin wire mesh system 6mm/5mm/6mm is suit to less budget constraints. Hot dipped galvanised to BS EN ISO 1461 or Hot dipped galvanised to BS EN ISO 1461 and Polyester Powder Coated to a wide range of standard RAL colours can ensure that twin wire mesh fence is durable used in various of environment and applied to Sports Grounds, Parks, Commercial, Industrial Estates, Allotments and etc.

Dimensions:

  1. Wire diameter: Twin horizontal wire: 8.0mm; Vertical wire: 6.0mm.
  2. Wire diameter: Twin horizontal wire: 6.0mm; Vertical wire: 5.0mm.

Mesh apertures: 50mm × 200mm.

Panel height: from 630mm to 5000mm.

Panel width: 2500mm.

Post size:

  • Square Post: 50 × 50mm, 60 × 60mm.
  • Rectangular Post: 80 × 60 × 2.5mm, 120 × 60 × 3mm.
  • Peach post: 70 × 100mm.

Post height: from 1100mm to 6200mm.

Finish:

  1. Hot dipped galvanised to BS EN ISO 1461.
  2. Powder coated to BS EN 13438.

Specification:

Double Wire Mesh Fence Specifications
Height x Width (mm) Mesh Size
(mm)		   Wire Diameter Post Height
 (mm)
Wire Dia
(mm)		 Wire Dia
(mm)		 Wire Dia          (mm)
630X2500 50X200 8X2 + 6 6X2 + 5 6X2 + 4 1100
830X2500 50X200 8X2 + 6 6X2 + 5 6X2 + 4 1300
1030X2500 50X200 8X2 + 6 6X2 + 5 6X2 + 4 1500
1230X2500 50X200 8X2 + 6 6X2 + 5 6X2 + 4 1700
1430X2500 50X200 8X2 + 6 6X2 + 5 6X2 + 4 1900
1630X2500 50X200 8X2 + 6 6X2 + 5 6X2 + 4 2100
1830X2500 50X200 8X2 + 6 6X2 + 5 6X2 + 4 2400
2030X2500 50X200 8X2 + 6 6X2 + 5 6X2 + 4 2600
2230X2500 50X200 8X2 + 6 6X2 + 5 6X2 + 4 2800
2430X2500 50X200 8X2 + 6 6X2 + 5 6X2 + 4 3000
Other height and length are on request.

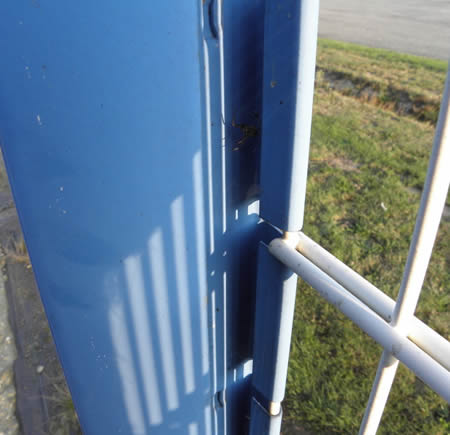

Installation:

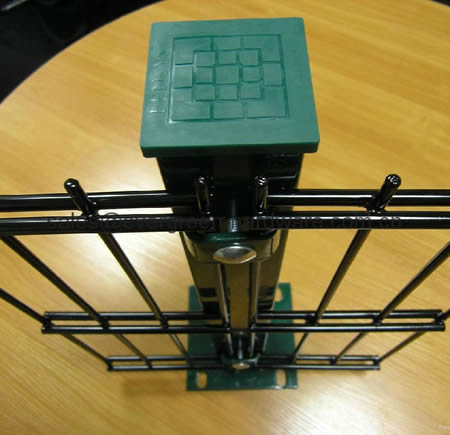

Clamp and M8 bolt.
Use clamp and M8 square bolts with nuts through Square/Rectangular posts.
The edge wire goes through the peach post hole.
Top barbed wire: Qualified duoble wire fence can supply top razor wire or barbed wire for further security.

Gate: Qualified can design and make gates that suit to twin mesh fence with anti-climb protection.

Double Wire Fence Processing:

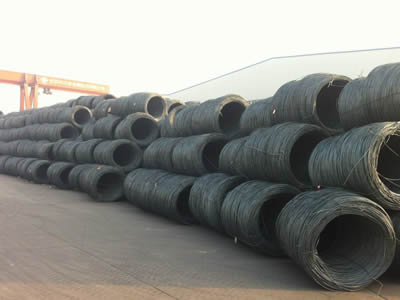

1. Low carbon Steel Q235 Material

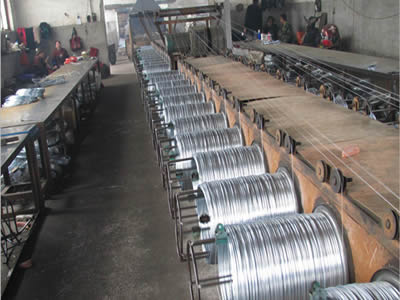

2. Galvanized wire

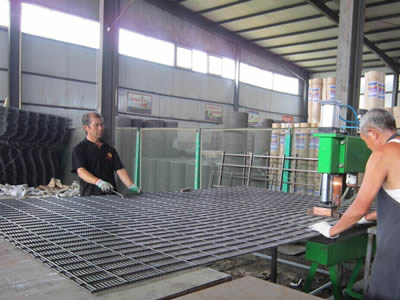

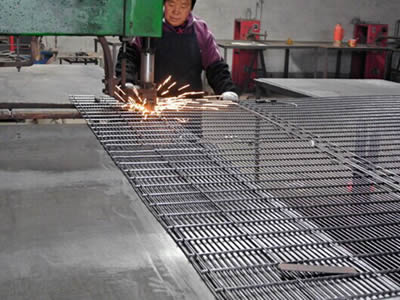

3. Welding processing for double wire fence

4. Welding Strength Processing

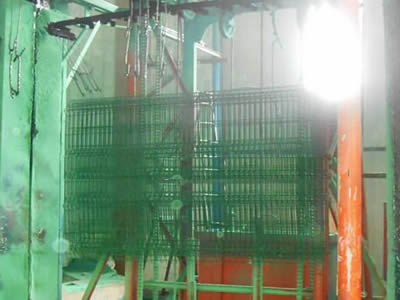

5. Powder coated double wire fence

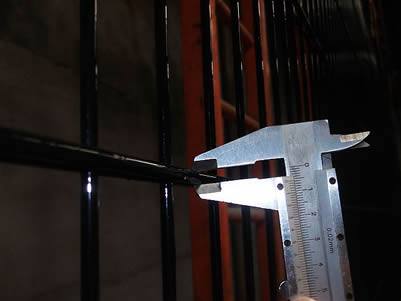

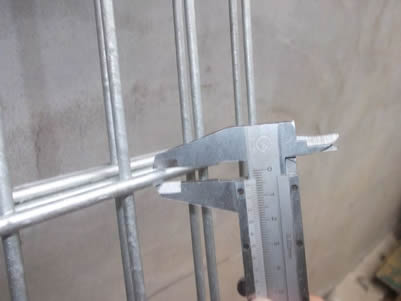

Test

Galvanized double wire fence
Powder coated double wire fence

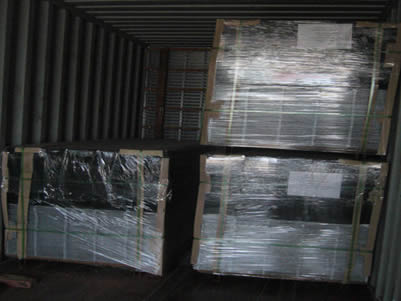

Packing double wire fence

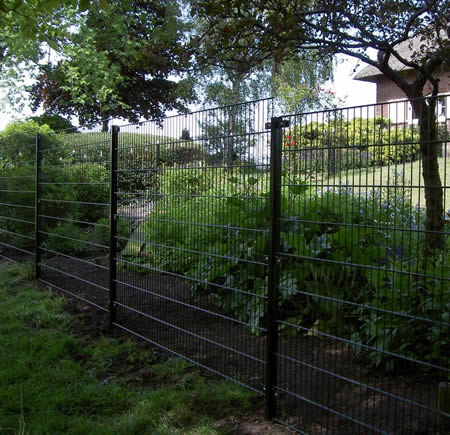

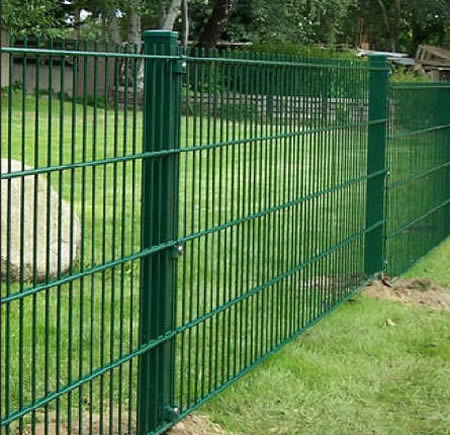

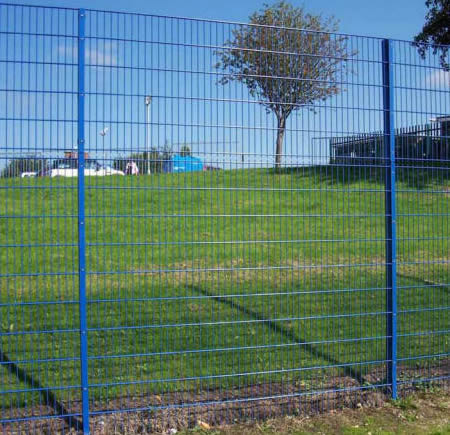

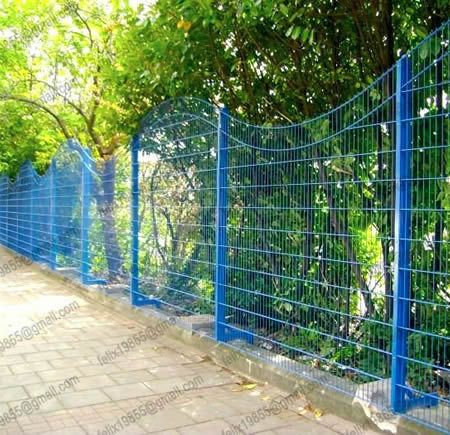

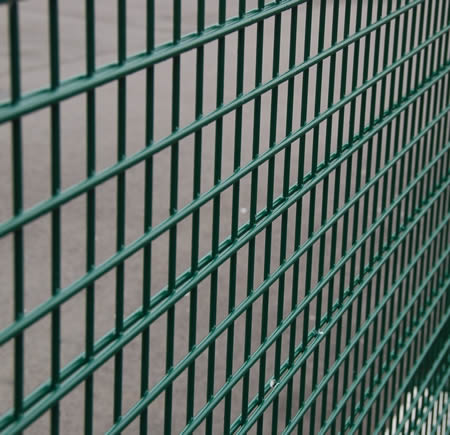

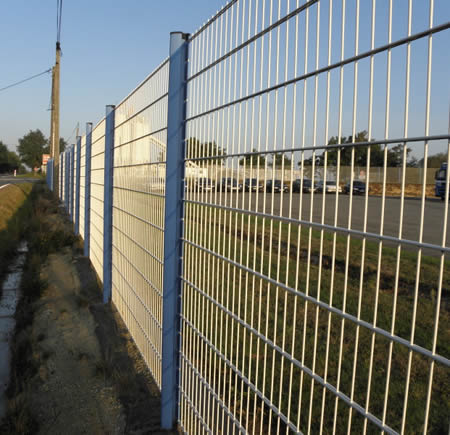

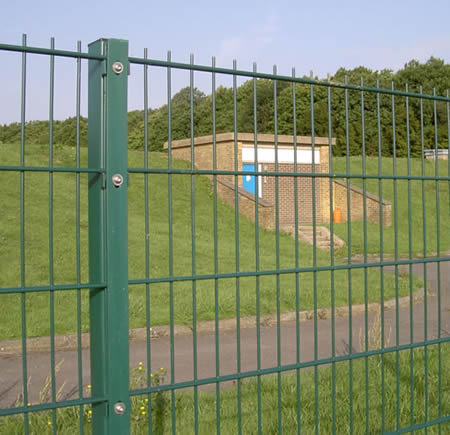

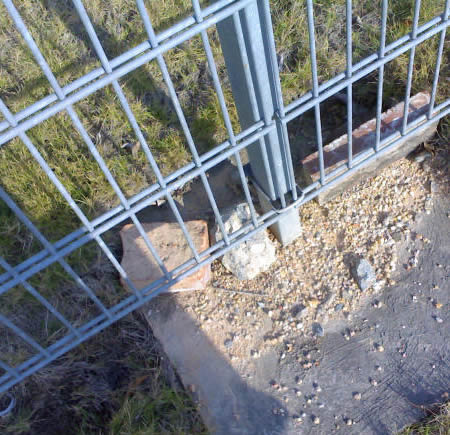

Gallery of Double Wire Fence Application:


Double Wire Fence Gallery
