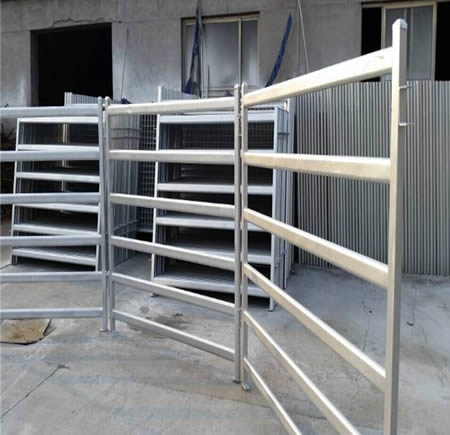

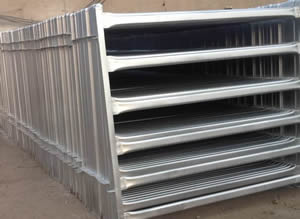

Livestock Fence Panel

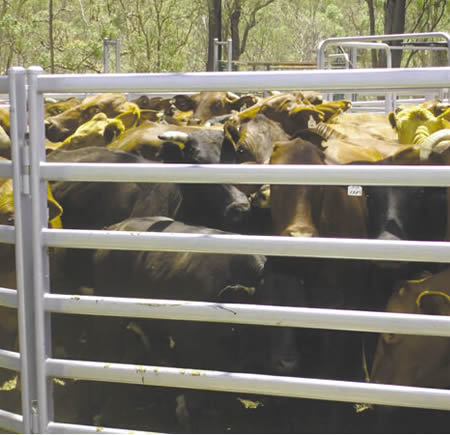

Cattle Fence

This kind of fence has so many different name, also called livestock fencing,field fence,corral pen,steek fence,farm gate,livestock farm fence,cattle fence panel, etc.

Materials: Low Carbon steel.

Farm Cattle Fence Features: It can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations.





Description:

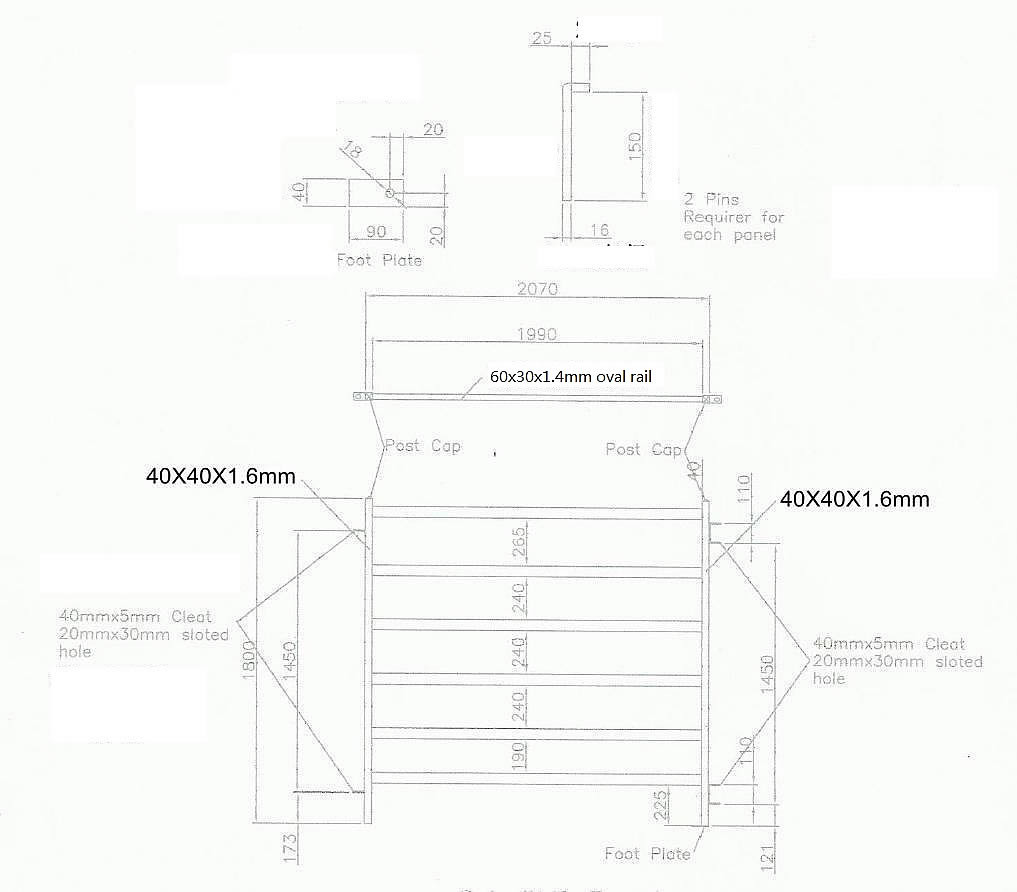

Size 1.8m height, 2.1m or 2.4m length
Vertical pipe RHS, 50 × 50 × 2.0mm, 40 × 40 × 1.5mm or round pipe 40x1.5mm
Horizonal pipes Oval pipe 80 × 40 × 1.6mm, 80 × 40 × 2.0mm
Bars/Rails  6 bars/rails
Assessories With lugs, caps and pins

Cattle Pen Main Markets: Australia, European countries, Canada, America and Asia countries.
Hot dipped galvanized cattle panel Application: Farm corral,keep animals safe and protect your farm fields from wild animals or thieves. We have our own factories which manufacturing tube,pipe,steel channel and other steel  accessories,free customization.

Cattle Panels Processed:

  1. Firstly, we prepared the pipe (square pipe or the round pipe, the elliptic).

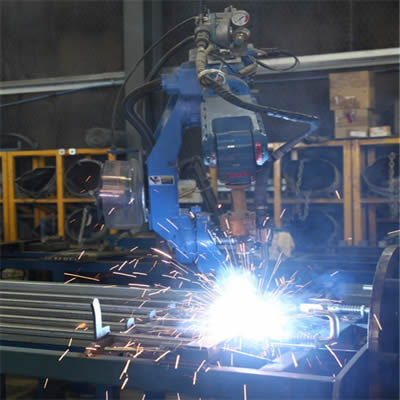

  2. Then put the pipe on the welded shaping machine, the pipe are galvanized,   welded the pipe together.
  3. Then make the spot smoothing,
  4. Then silver painted.

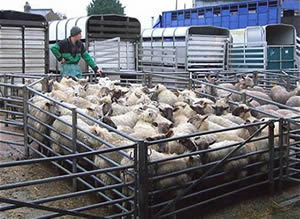

Sheep Fence

Portable Sheep Panel:

  • Light weight sheep panels are easy to carry and install.
  • Light weight sheep panels are easy to carry and install;
  • Hot dipped galvanized after welded. Good quality.

Sheep Fence Description:

  • The overall size is 1500mm × 940mm high or 3000 × 940mm with 2 pieces of drag foot.
  • Posts and drag foot: Dia32 × 2.0mm HDG pipes.
  • 6 pieces of rails made by dia26 × 2.0mm HDG pipe
  • Middle support: 856 × 50 × 5.0mm.
  • Two posts with end caps.

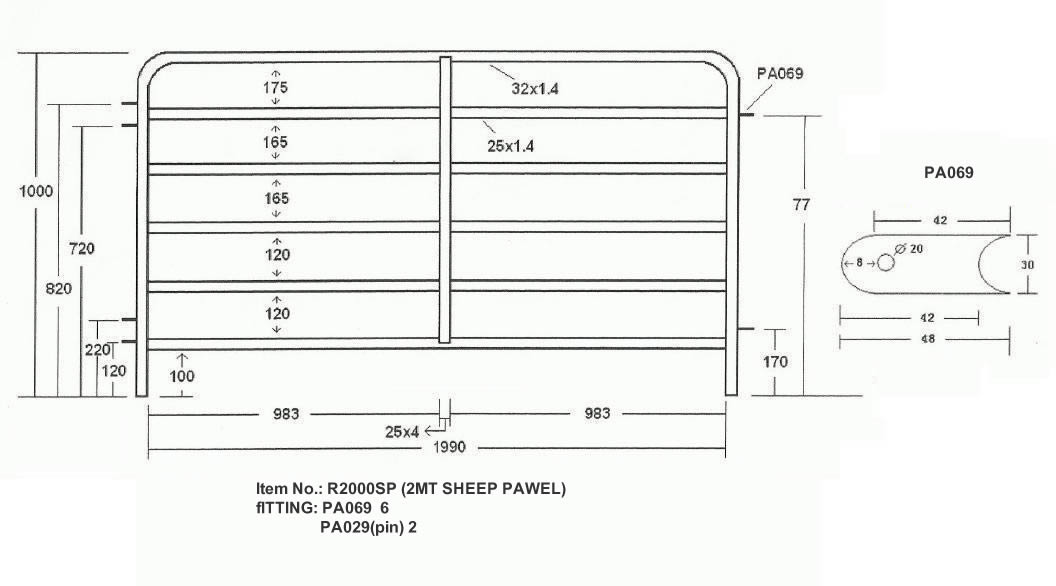

Sheep/Goat panels
size 1.1m height, 2m or 3m length
Vertical pipe RHS 50 × 50 × 1.6mm
Horizonal pipes Oval pipe 80x40mm, 1.6mm thickness
bars/rails 6 bar/rails
Assessories with lugs, caps and pins.

Horse Fence

Metal type: Carbon steel.

Horse Fence Panel Application: in feedlot, grassland for protection, rearing animals such as pony, cattles, horse, sheep etc

Surface: Hot-dipped galvanized or electro galvanized then PVC coating .







Height 1.6m (with 5 rails), 1.8m (with 6 rails)
Length 2.065m, 2.070m, 2.090m, 2.1m
Frame pipe 32mmOD, 42mmOD, 48mmOD, 40 × 40mmRHS, 50 × 50mmRHS
Inner rail 32mmOD, 42mmOD, 48mmOD, 40 × 40mmRHS, 50 × 50mmRHS, 30 × 60mm oval tube, 40 × 80mm oval tube
Thickness 1.6mm, 2mm

Livestock Fence Panel Processing:

1. Machine cut pipe

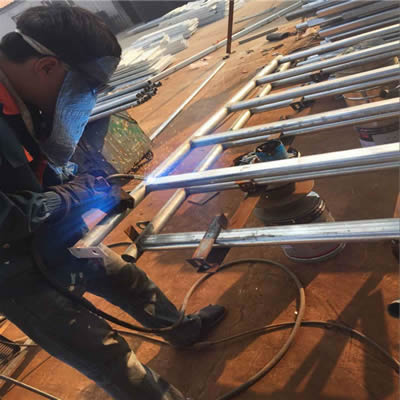

2. Workers process ing livestock panel

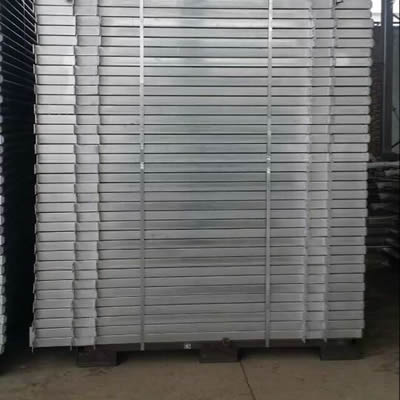

3. Packing Method

4. Packing

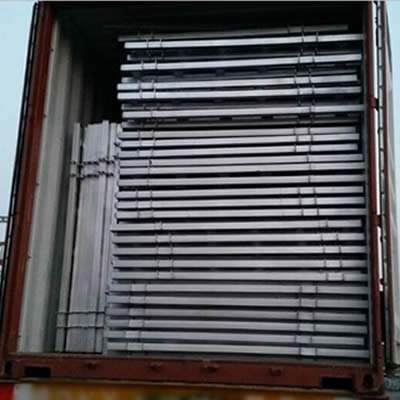

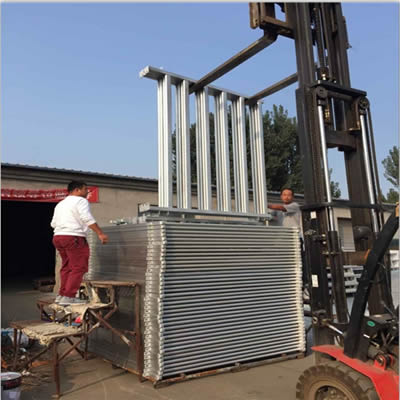

5. Loading

Test

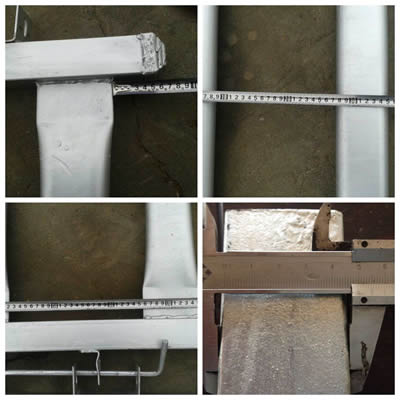

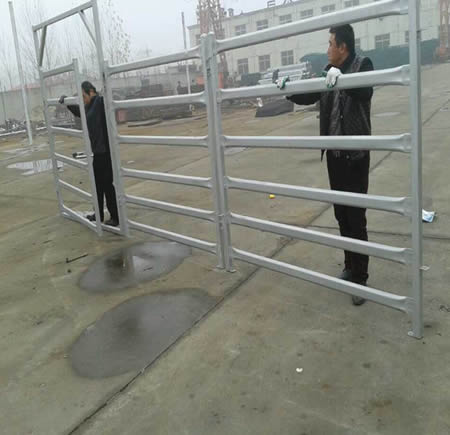

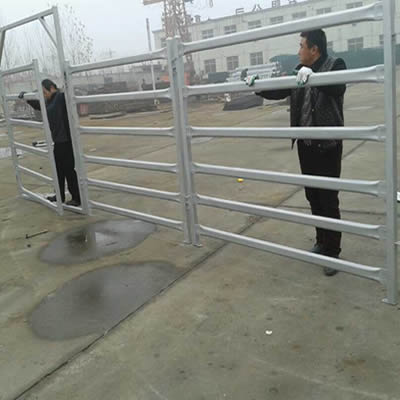

Panel Testing

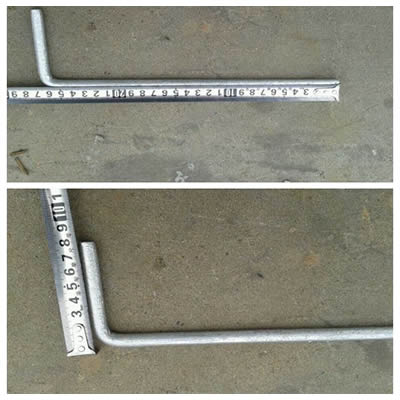

Hook

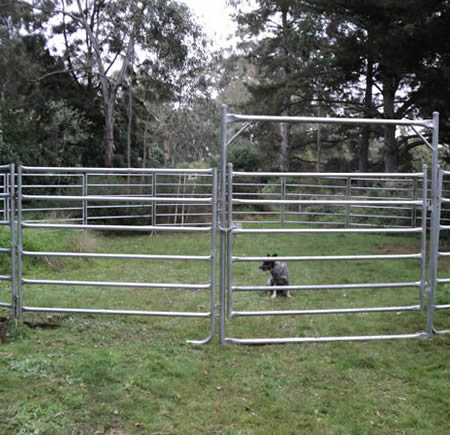

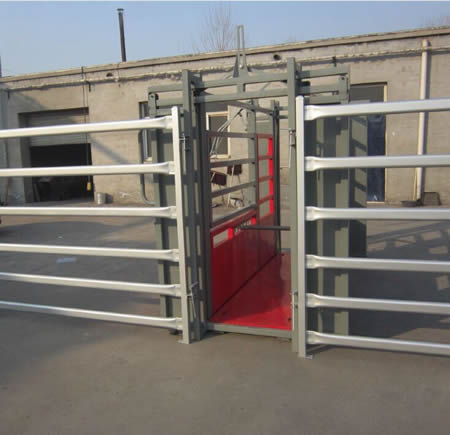

Gate

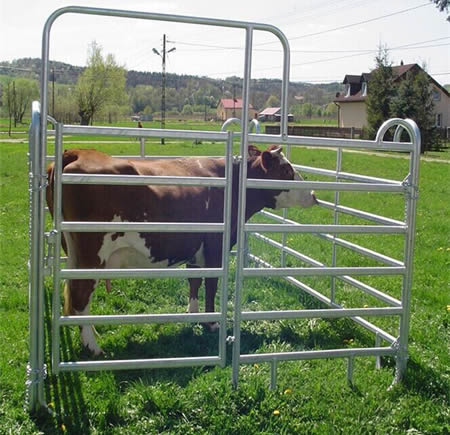

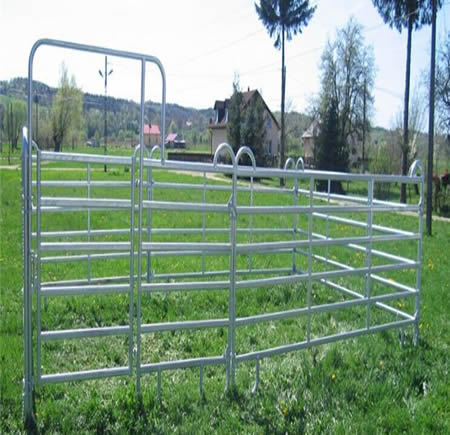

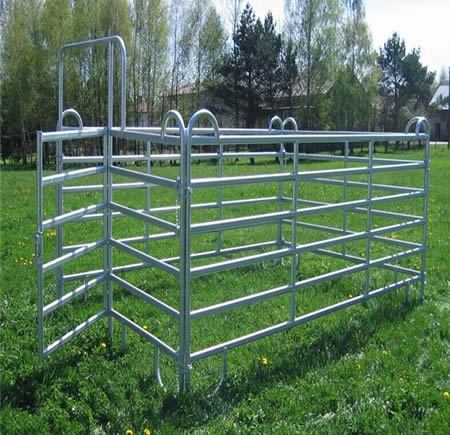

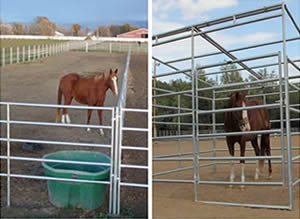

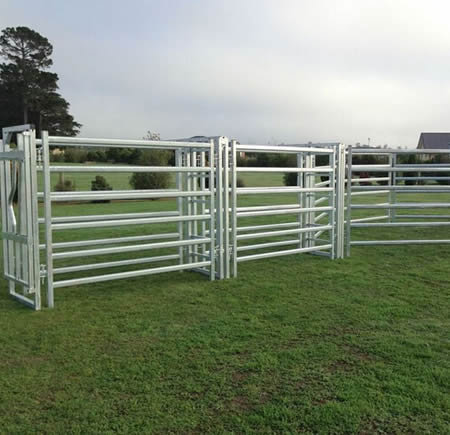

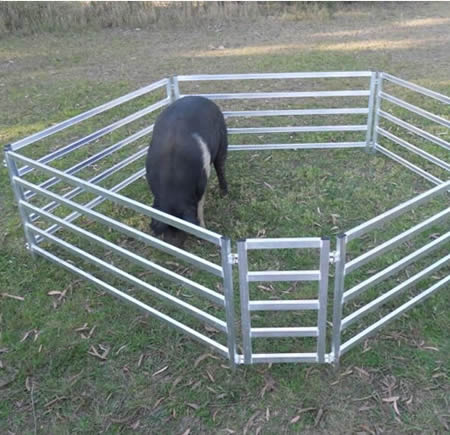

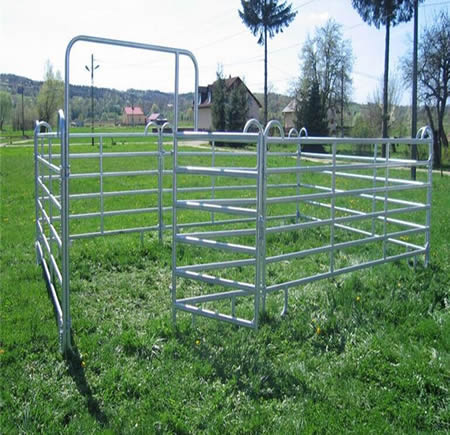

Gallery of Livestock Fence Panel Application:


Livestock Fence Panel Gallery
